Volleyball Single Event Detailed Widget

The Single Event Detailed widget shows one volleyball match in detail, with its set-by-set breakdown.

Preconditions

• Your project must have the Volleyball feature enabled. Widget categories are switched on per project, so if Volleyball widgets does not appear in the block picker, ask your administrator to enable it.
• You need permission to create or edit articles.
• This widget is match-scoped, so you need a specific match.

Adding the Volleyball Single Event Detailed Widget to a post

To set up the widget:

1. Open an article for editing, or create a new one.
2. Hover over a block in the article body. A row of icons appears, one for each sport enabled on your project — the Volleyball icon is highlighted here.

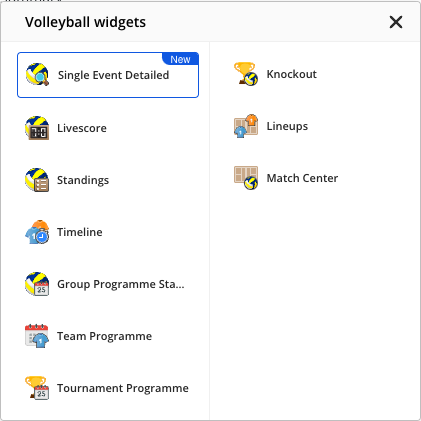

3. Select the Volleyball icon, then choose Single Event Detailed from the widget list that opens.

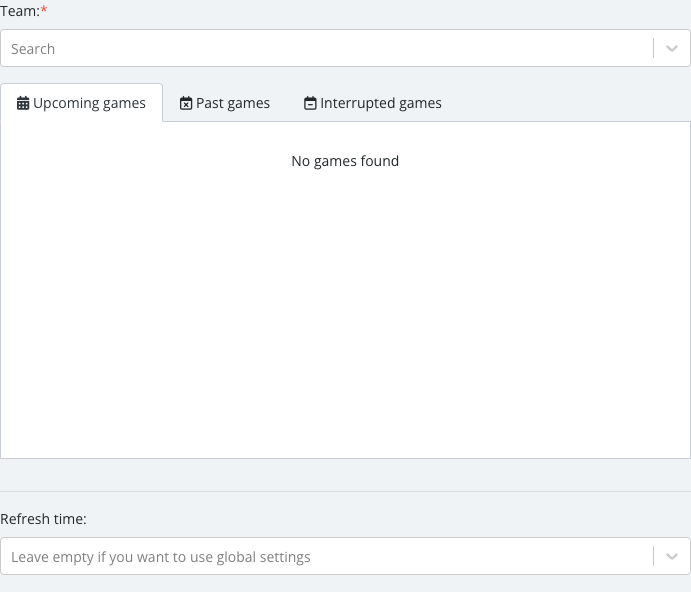

4. Set the widget options. Team, Display main events, Display Scoreboard, Refresh time control what it shows.

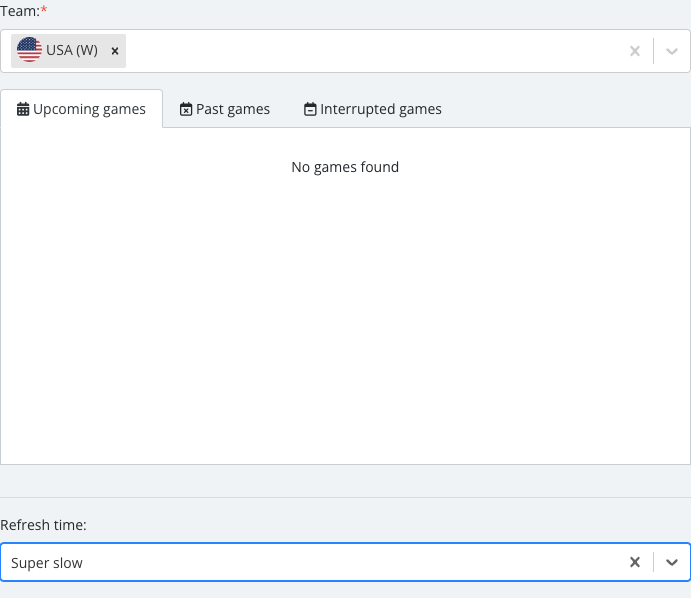

5. Check the options are the ones you want. Some fields depend on others, so a list can be empty until you set the field above it.

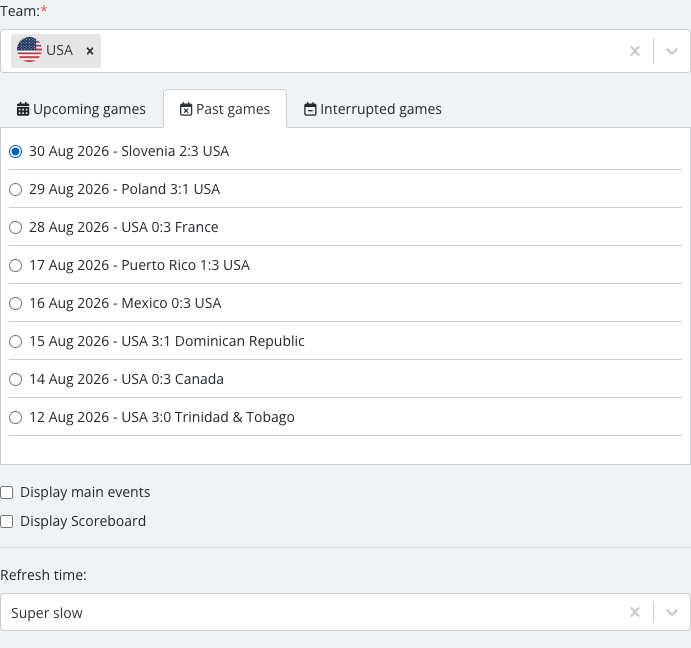

6. Setting a team reveals a list of that team’s matches, grouped under Upcoming games, Past games and Interrupted games tabs. Select the specific match you want — the widget has nothing to show until one is checked.

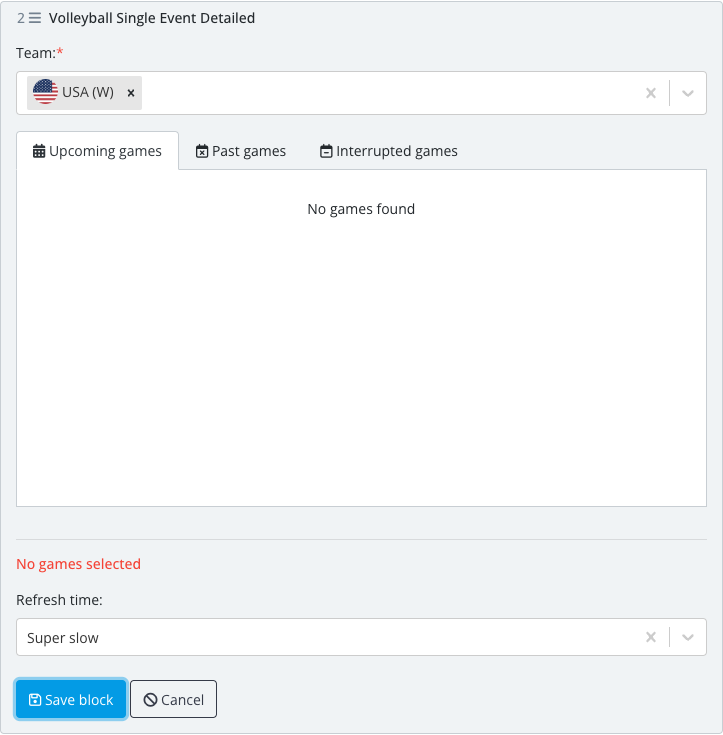

7. When done, select Save Block.



8. Hover the widget block and select the preview control to see the real widget.

Volleyball Single Event Detailed Widget options

• Team (required) — The team whose data you want to show. Type to search.
• Display main events — Highlights standout events (such as decisive plays) directly on the match card, for sports that record them.
• Display Scoreboard — Shows a set-by-set score breakdown underneath the match result.
• Refresh time — Controls how often the published widget refetches its data. Leave empty to use your project’s global refresh setting.

What the Volleyball Single Event Detailed Widget shows

The match card shows:

• SET1-SET5 — set scores: points won by each team in each set played
• R — result: sets won by each team, which decides the match

Preview of the Volleyball Single Event Detailed Widget

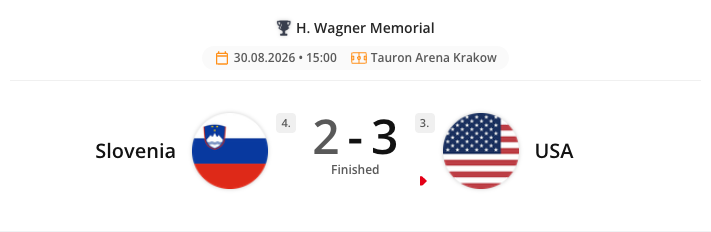

By default the widget shows just the match result. Checking Display Scoreboard adds the set-by-set breakdown underneath it, shown below.

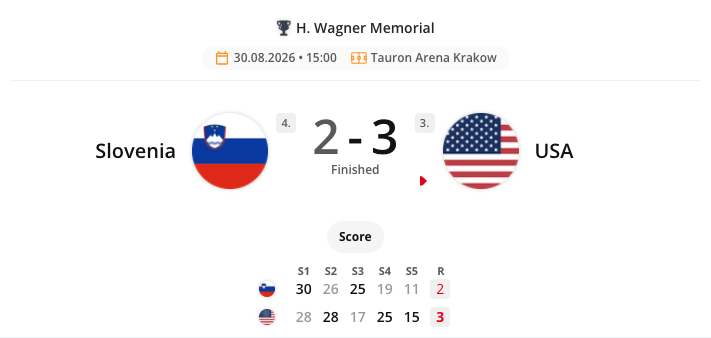

With Display Scoreboard checked, the set-by-set breakdown appears underneath the result.

Good to know

• The preview area is narrower than a published page, so the widget uses its compact layout there and may hide columns that the published version shows.
• The widget always renders whichever version of the sports widgets library your project is on. There is no version to set.
