Volleyball Timeline Widget

Add a volleyball match timeline to a post.

The Timeline widget shows the sequence of events within a single volleyball match, set by set.

The fastest way to add a Volleyball widget: select the Volleyball icon in the quick-add row below the article body — no need to open the full block picker and search a category list.

Preconditions

  • Your project must have the Volleyball feature enabled. Widget categories are switched on per project, so if Volleyball widgets does not appear in the block picker, ask your administrator to enable it.
  • You need permission to create or edit articles.
  • You need a specific match, so this widget is match-scoped rather than competition-scoped.

Adding the Volleyball Timeline Widget to a post

To set up the widget:

  1. Open an article for editing, or create a new one.
  2. Below the blocks in the article body is a row of quick-add buttons: the content blocks first, then one icon for each sport enabled on your project, then +. Hover an icon to see its name — the Volleyball icon is hovered here.

    The quick-add row below the article body: content-block buttons, then one icon for each sport enabled on this project, then +. The Volleyball icon is hovered and shows its name.

  3. Select the Volleyball icon, then choose Timeline from the widget list that opens.

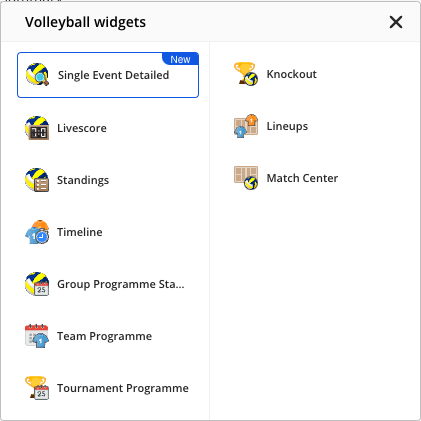

    The Volleyball widgets list opened from the sport icon, with Timeline among its widgets.

  4. Set the widget options. Team controls what it shows.

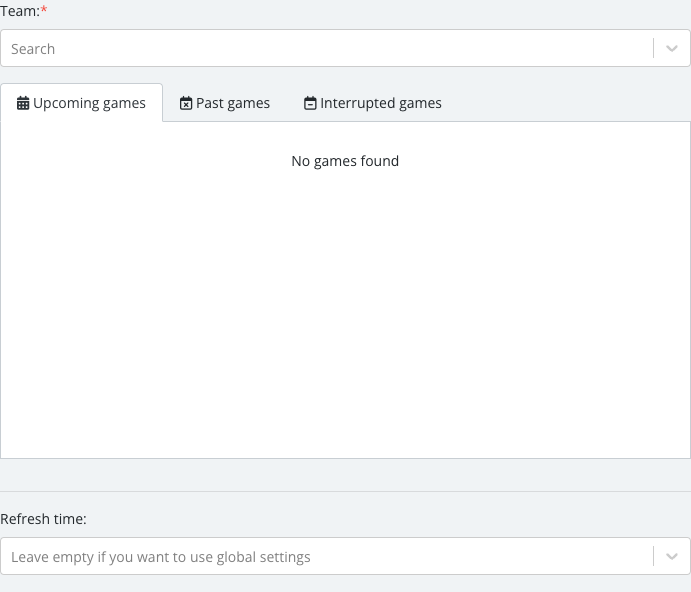

    The Timeline options panel as it first opens.

  5. Check the options are the ones you want. Some fields depend on others, so a list can be empty until you set the field above it.

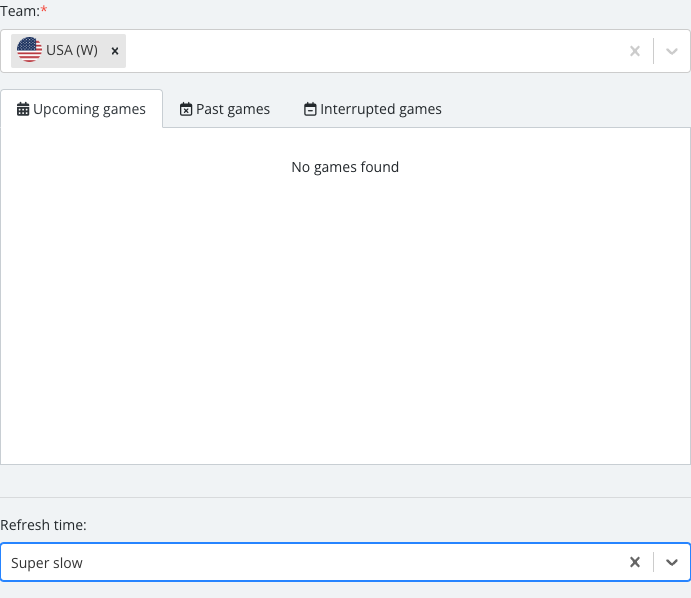

    The Timeline options panel with its fields set.

  6. The match list has Upcoming games, Past games and Interrupted games tabs. They read “No games found” until a team is set; then Upcoming games lists the team’s scheduled matches and Past games its finished ones. If Upcoming games stays empty, the team has no scheduled matches — open Past games. Select the specific match you want — the widget has nothing to show until one is checked.

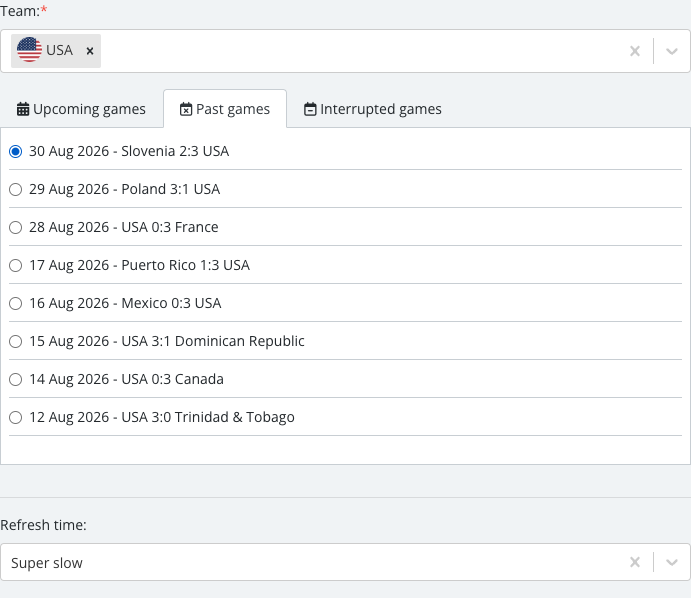

    The match list for the selected team, with one specific Timeline match checked.

  7. When done, select Save block.

    The saved Timeline widget block in the article body.

  8. Hover the saved block. Of the controls that appear (Copy embed code, Preview, Edit and Remove), select Preview to see the real widget.

Volleyball Timeline Widget options

  • Team (required) — The team whose data you want to show. Type to search.
  • Refresh time — Controls how often the published widget refetches its data. Leave empty to use your project’s global refresh setting.

What the Volleyball Timeline Widget shows

The timeline is built from match events, grouped by set:

  • Set — set header: one per set with its score; the last set played opens expanded and the earlier ones collapsed
  • Score — running score: points as they accumulate through the set
  • Point — point event: who won the point and how (an attack, a block or an opponent error), with the player involved

Preview of the Volleyball Timeline Widget

The widget shows the match’s events set by set, with the most recent first.

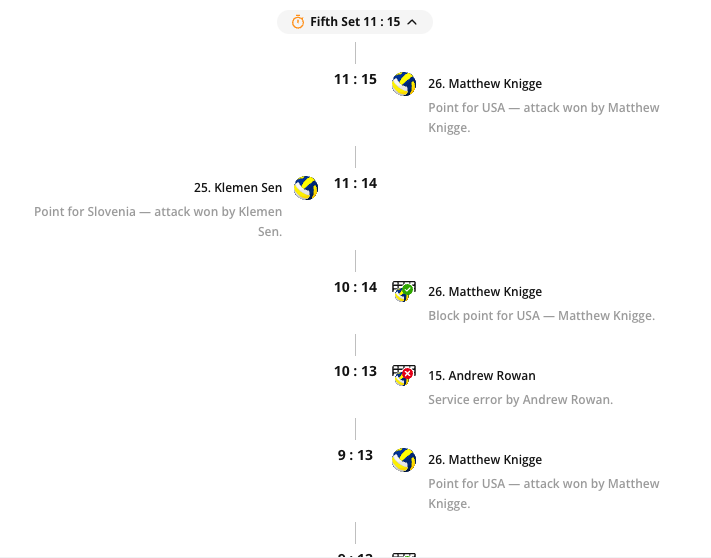

The Volleyball Timeline widget rendered in the CMS preview. The widget shows the match’s events set by set, with the most recent first.

Good to know

Only the preview shows the real widget. The collapsed block and the options panel show a CMS summary card instead — always check preview before publishing.

  • The preview area is narrower than a published page, so the widget uses its compact layout there and may hide columns that the published version shows.
  • The widget always renders whichever version of the sports widgets library your project is on. There is no version to set.
